US series is multiplex, pilot operated piston, conductive, and normally close (NC) 2/2 solenoid valve. Availability of fluid: steam, light oil, heavy oil. A minimum differential pressure is required for opening and closing of the valve. Flying Leads Type Coil.
US series is multiplex, pilot operated piston, conductive, and normally close (NC) 2/2 solenoid valve. Availability of fluid: steam, light oil, heavy oil. A minimum differential pressure is required for opening and closing of the valve. Flying Leads Type Coil.
The body material: Brass
Seal Material: PTFE
| Model | Port Size | Orifice(mm) | Material | Types | Working Pressure |
|---|---|---|---|---|---|
| US-10 | G3/8" | 17 | Forged Brass | Piston / NC / -5ºC~+185ºC | 0.1-1.5Mpa |
|
|||||
| US-15 | G1/2" | 17 | Forged Brass | Piston / NC / -5ºC~+185ºC | 0.1-1.5Mpa |

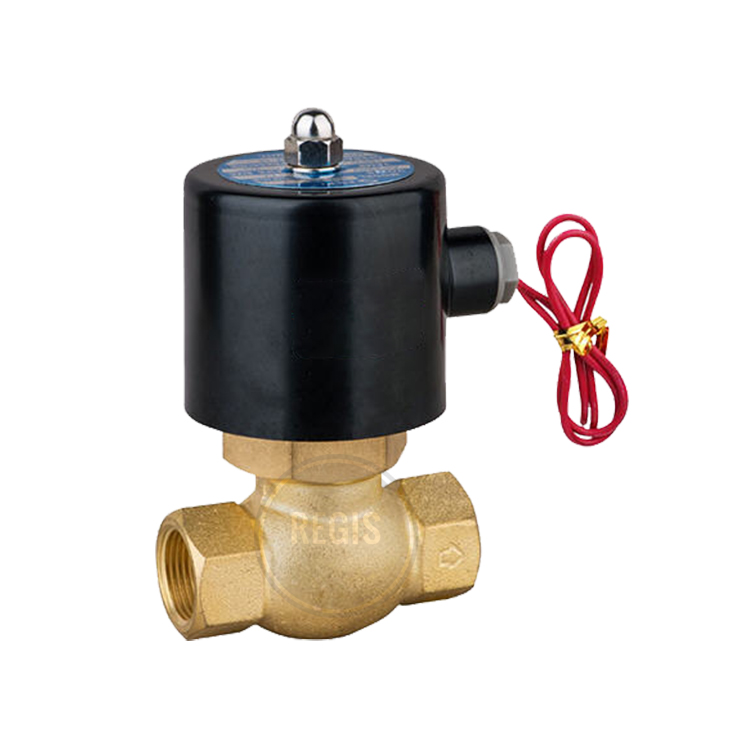

US-15 solenoid piston brass valves 2-way 1/2” normally closed
Item US
Mfr. Model US-15
View Product Details
|
|||||
| US-20 | G3/4" | 17 | Forged Brass | Piston / NC / -5ºC~+185ºC | 0.1-1.5Mpa |
US-20 solenoid piston brass valves 2-way 3/4” normally closed
Item US
Mfr. Model US-20
View Product Details
|
|||||
| US-25 | G1" | 20 | Forged Brass | Piston / NC / -5ºC~+185ºC | 0.1-1.5Mpa |

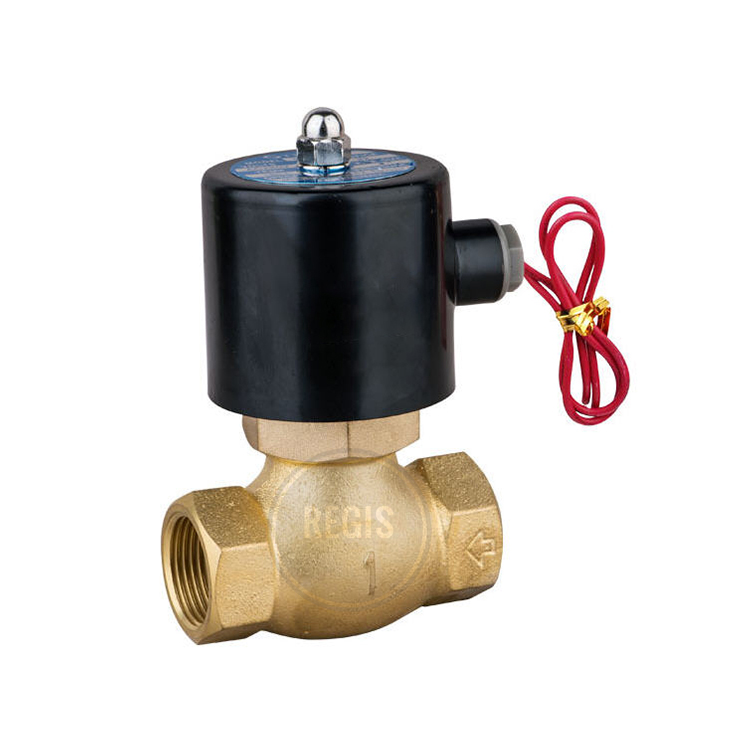

US-25 solenoid piston brass valves 2-way 1” normally closed
Item US
Mfr. Model US-25
View Product Details
|
|||||
| US-35 | G1-1/4" | 30 | Forged Brass | Piston / NC / -5ºC~+185ºC | 0.1-1.5Mpa |
US-35 solenoid piston brass valves 2-way 1-1/4” normally closed
Item US
Mfr. Model US-35
View Product Details
|
|||||
| US-40 | G1-1/2" | 30 | Forged Brass | Piston / NC / -5ºC~+185ºC | 0.1-1.5Mpa |

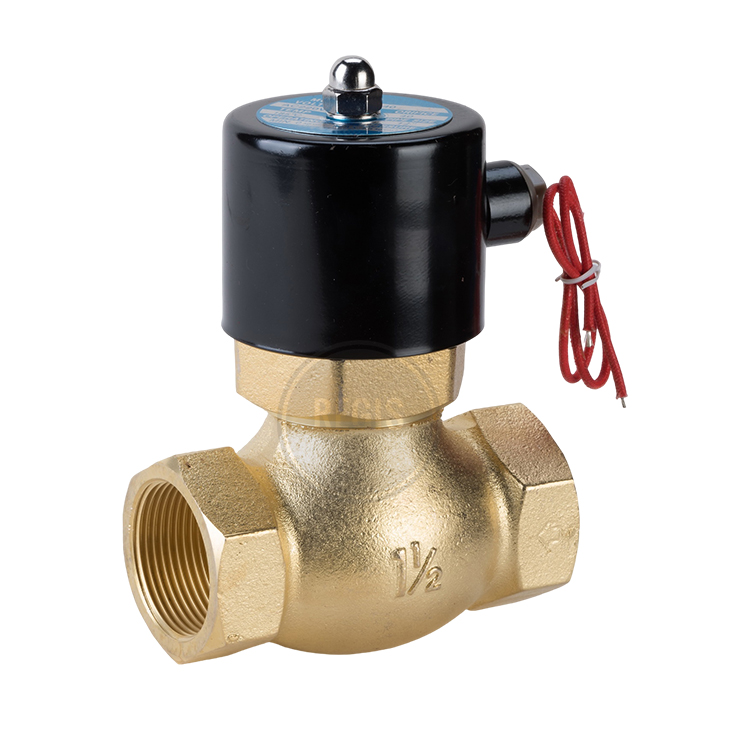

US-40 solenoid piston brass valves 2-way 1-1/2” normally closed
Item US
Mfr. Model US-40
View Product Details
|
|||||
| US-50 | G2" | 50 | Forged Brass | Piston / NC / -5ºC~+185ºC | 0.1-1.5Mpa |

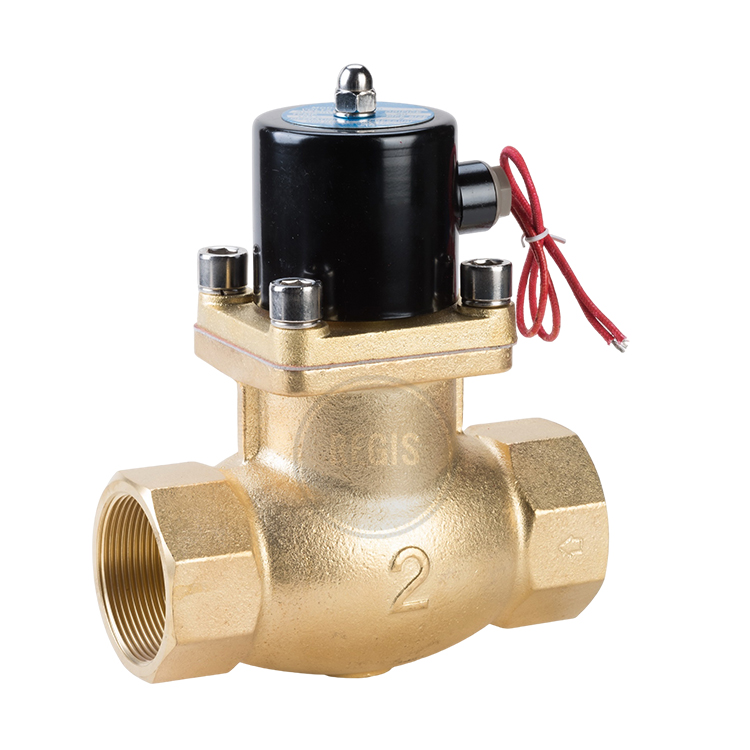

US-50 solenoid piston brass valves 2-way 2” normally closed
Item US
Mfr. Model US-50
View Product Details
|
|||||
US series is multiplex, pilot operated piston, conductive, and normally close (NC) 2/2 solenoid valve. Availability of fluid: steam, light oil, heavy oil. A minimum differential pressure is required for opening and closing of the valve. Flying Leads Type Coil.
The body material: Stainless Steel
Seal Material: PTFE
| Model | Port Size | Orifice(mm) | Material | Types | Working Pressure |
|---|---|---|---|---|---|
| US-S-10/15/20/25 | G3/8"~G1" | 17~20 | Stainless Steel | Piston / NC / -5ºC~+185ºC | 0.1-1.5Mpa |

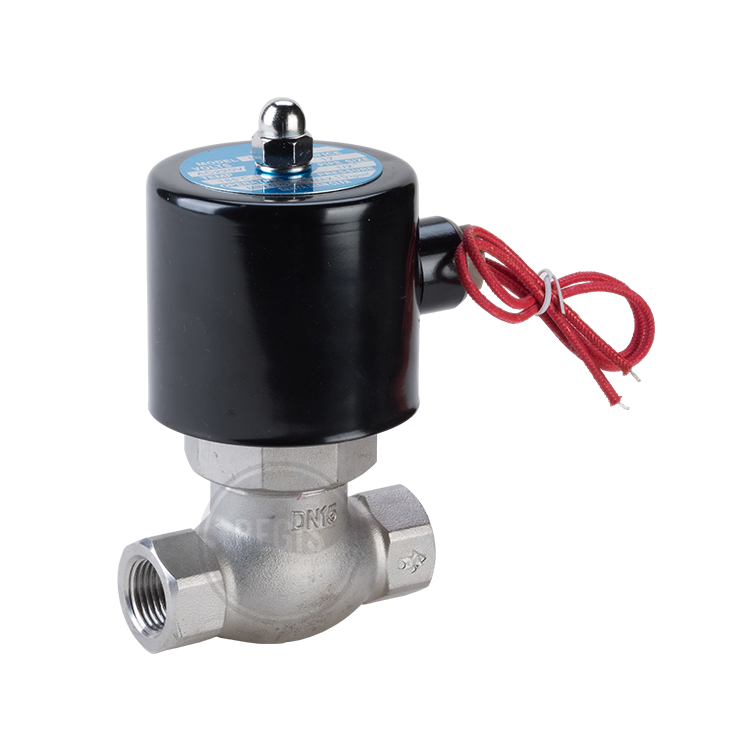

US Solenoid Stainless Steel Valves 2-way normally closed
Item US-S
Mfr. Model US-S-10/15/20/25
View Product Details
|
|||||
